Modular Panel — Sergiu Părgras

A family of green modular acoustic-panel configurations for offices and shared spaces

Developed for Askia Furniture, the Modular Panel System integrates multiple workplace functions into a family of sound-absorbing dividers. Meeting areas, sofas, desks, coffee stations, coat racks, and cubicles can all be assembled from the same panel language.

One panel, many rooms

Rather than treating acoustic screens as isolated objects, the system uses them as shared infrastructure. Curved and straight panels define space while accepting work surfaces, storage, seating, and accessories, allowing layouts to adapt as teams and activities change.

The prototype was developed across Rhinoceros, Grasshopper, V-Ray, and SolidWorks, moving between parametric configuration studies, mechanical design, small hardware tests, and full-scale fabrication.

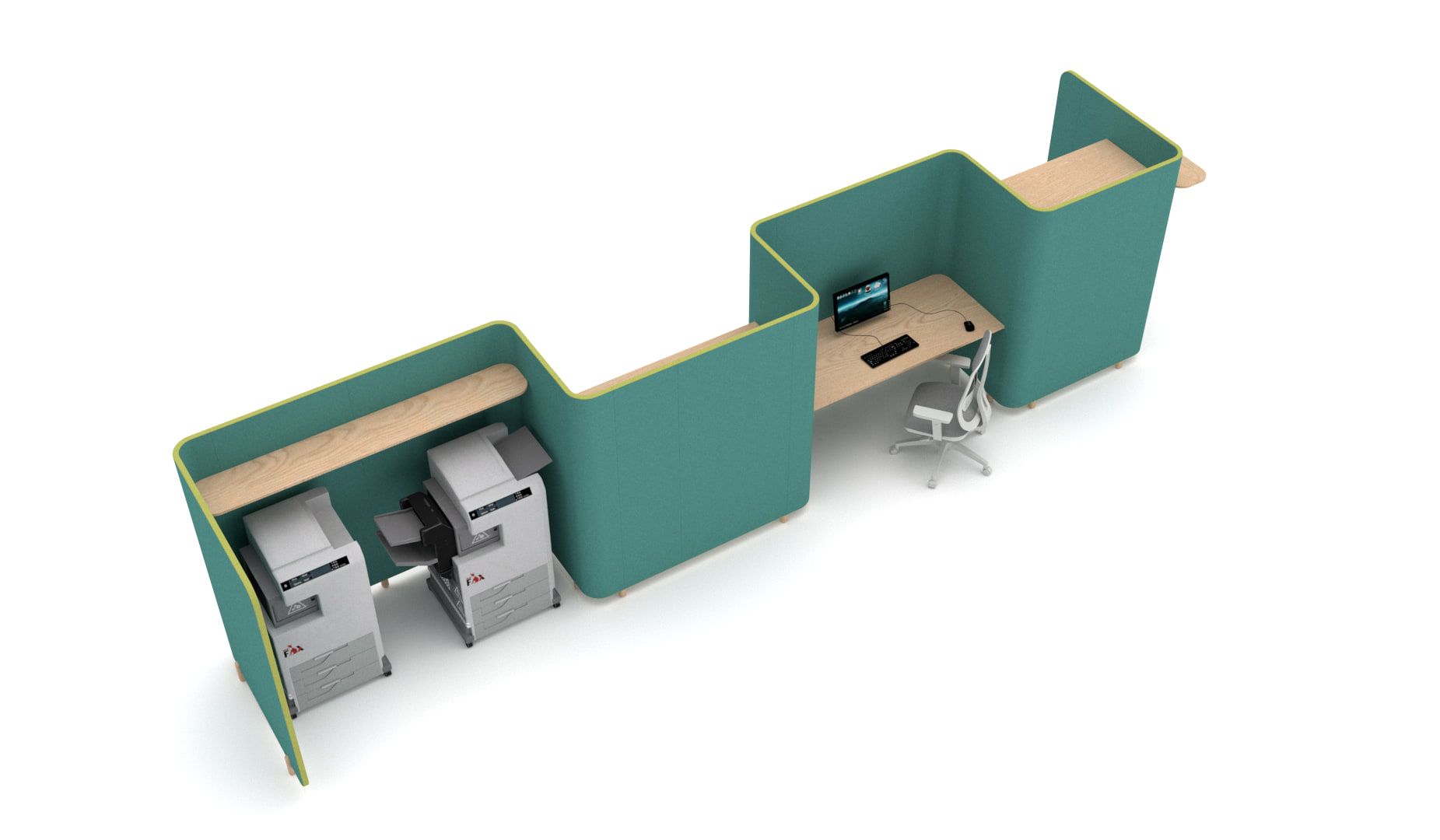

Modular acoustic panels configured around a print station and individual workstation — A shared panel run can organize equipment, storage, and individual work areas.

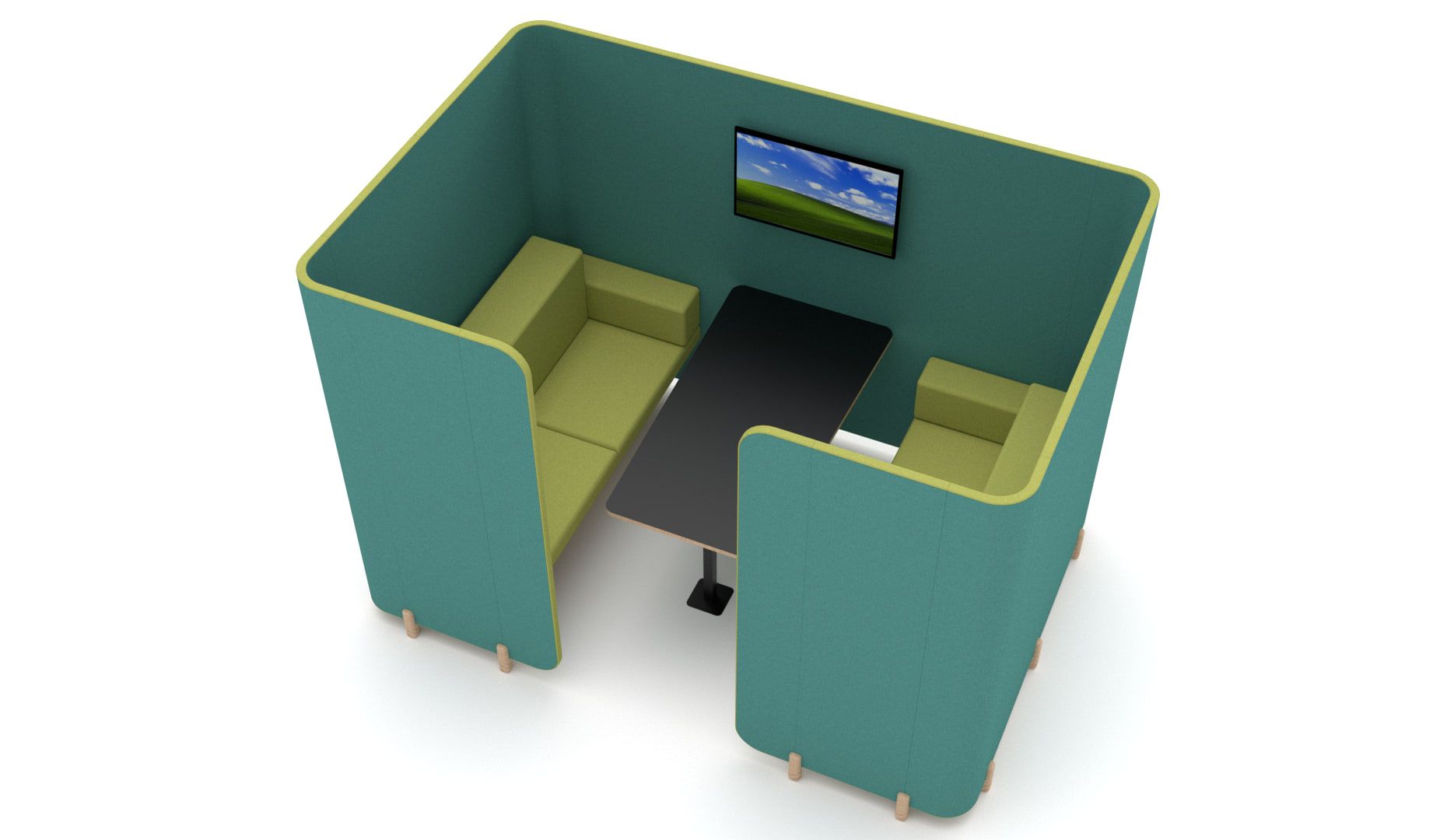

Modular acoustic panels forming an enclosed meeting room with integrated seating — The same system creates focused meeting spaces with seating and work surfaces.

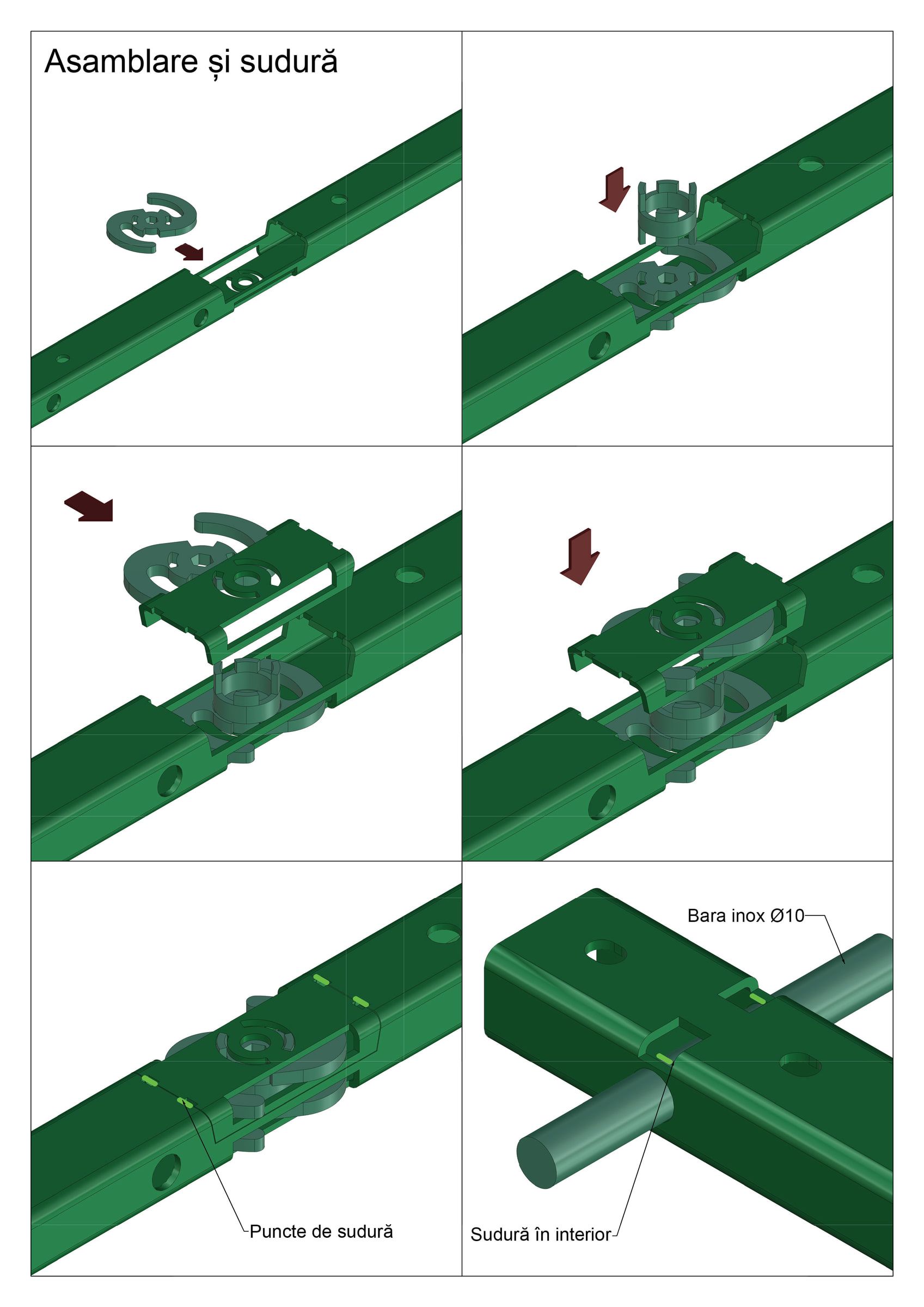

The solution was a robust mounting element designed to rigidly connect two panels while efficiently distributing the load directly to the floor. This metal connector allowed the two panels to be assembled using a single Allen wrench (hex key), which was concealed within the edges.

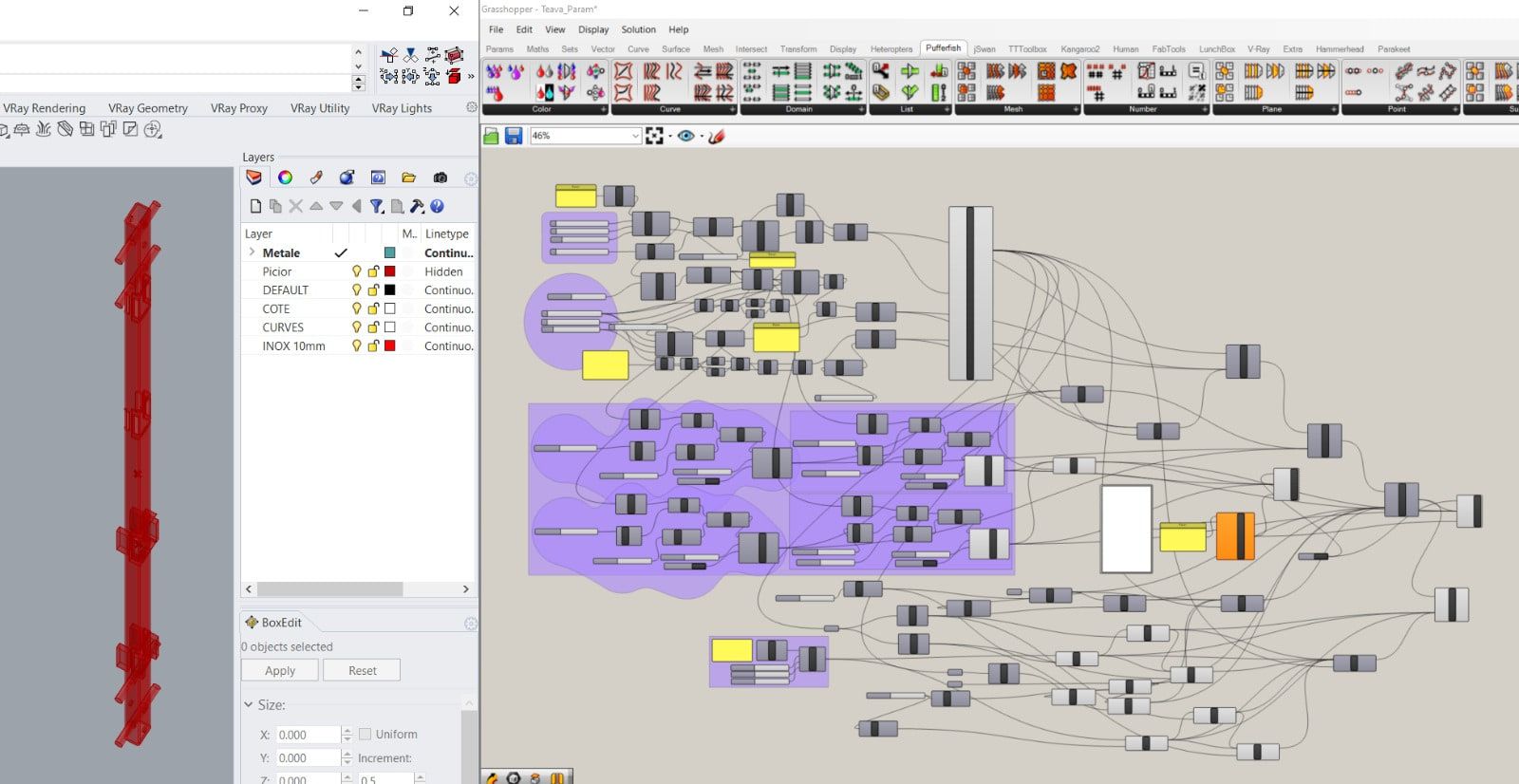

Grasshopper definition and three-dimensional connector model used to develop the panel system — Parametric development coordinated panel geometry, hardware positions, and repeatable configurations.

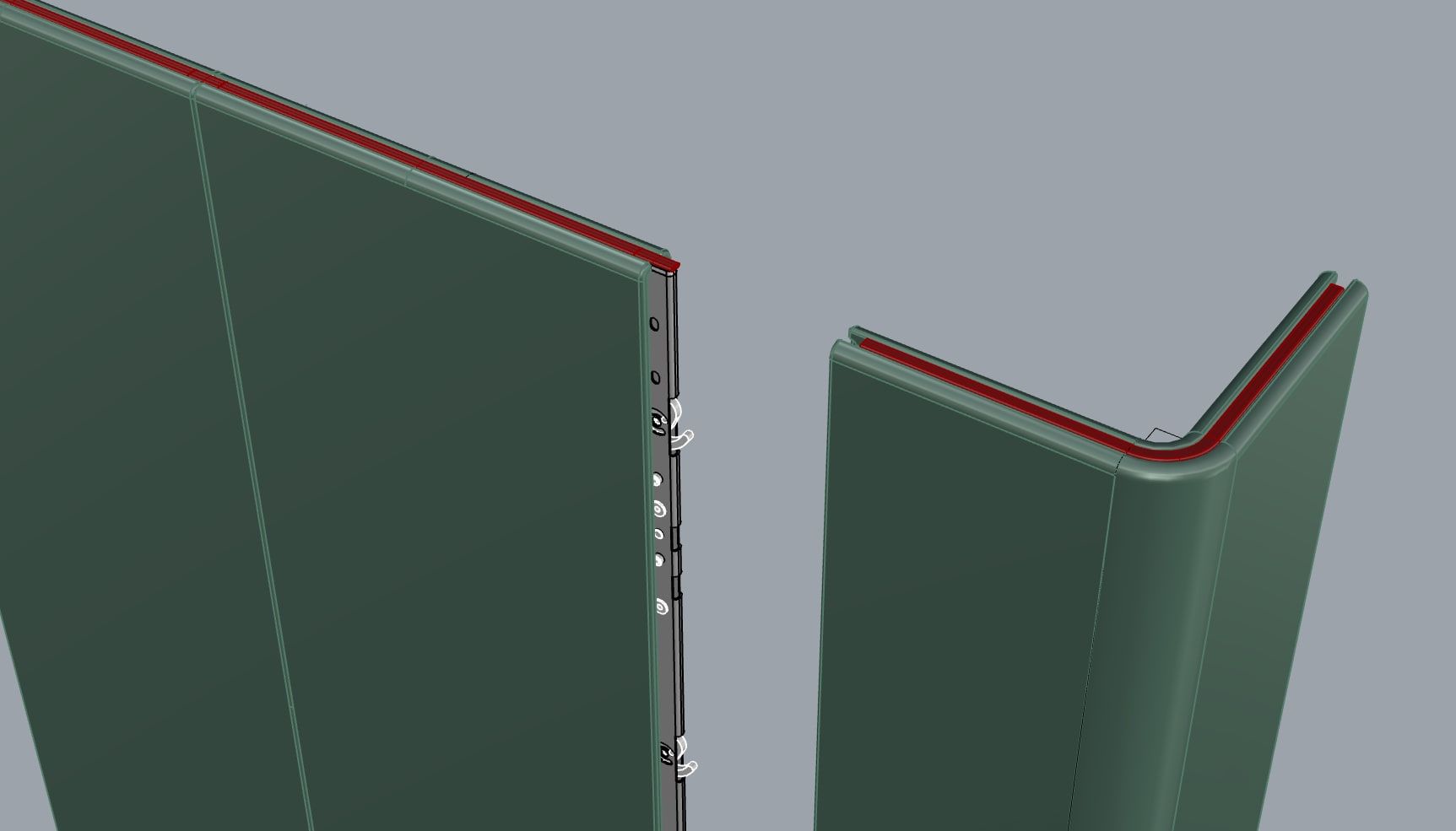

CAD detail showing the concealed metal connector between two acoustic panels — The concealed connector locks adjacent panels together along their shared edge.

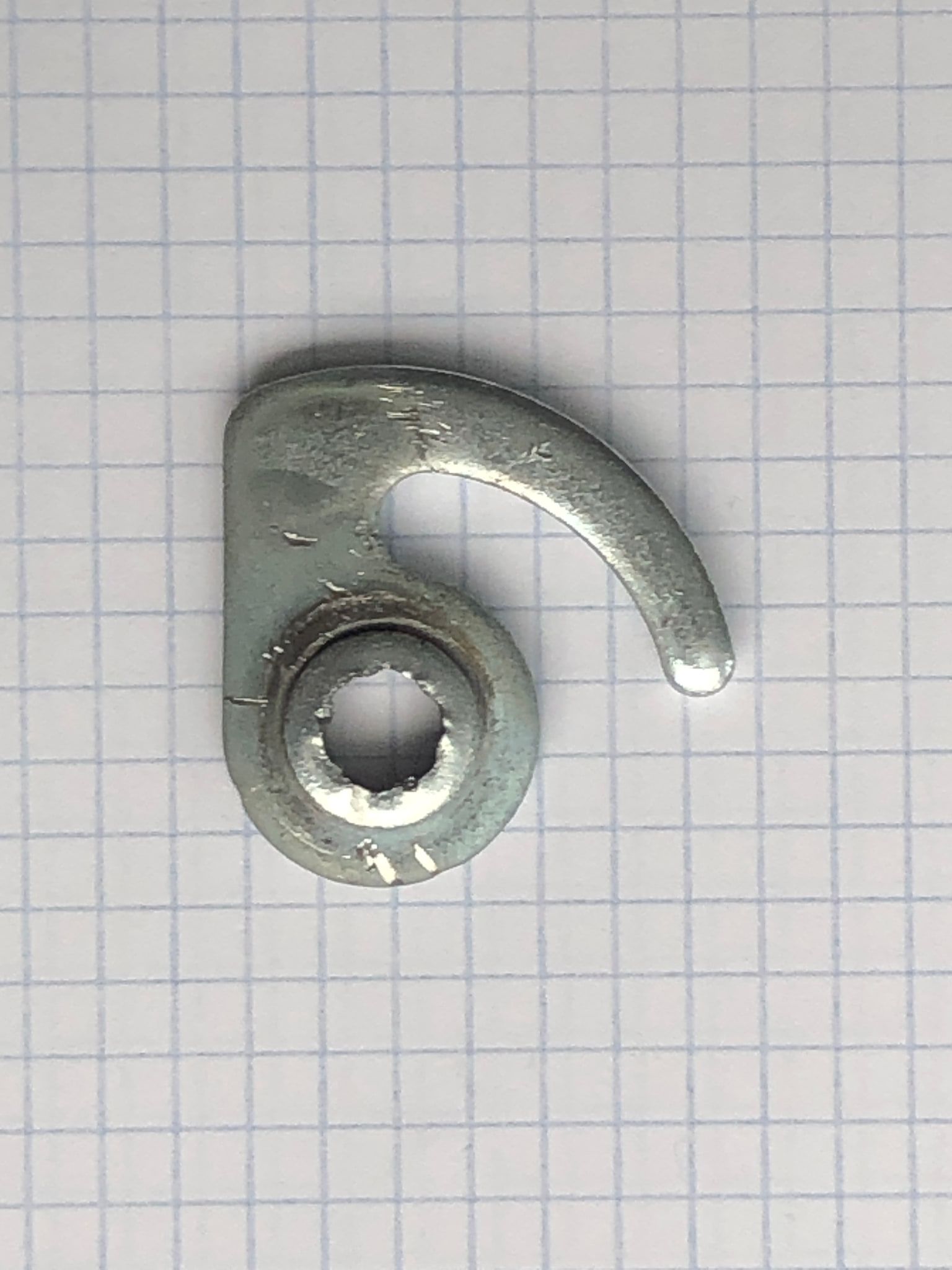

Small metal hook prototype for the modular panel connection system — Physical hardware studies tested engagement, tolerance, and tool access.

Rendered close-up of the wooden supports beneath a curved acoustic panel — Small timber supports stabilize each panel while keeping the system visually light.

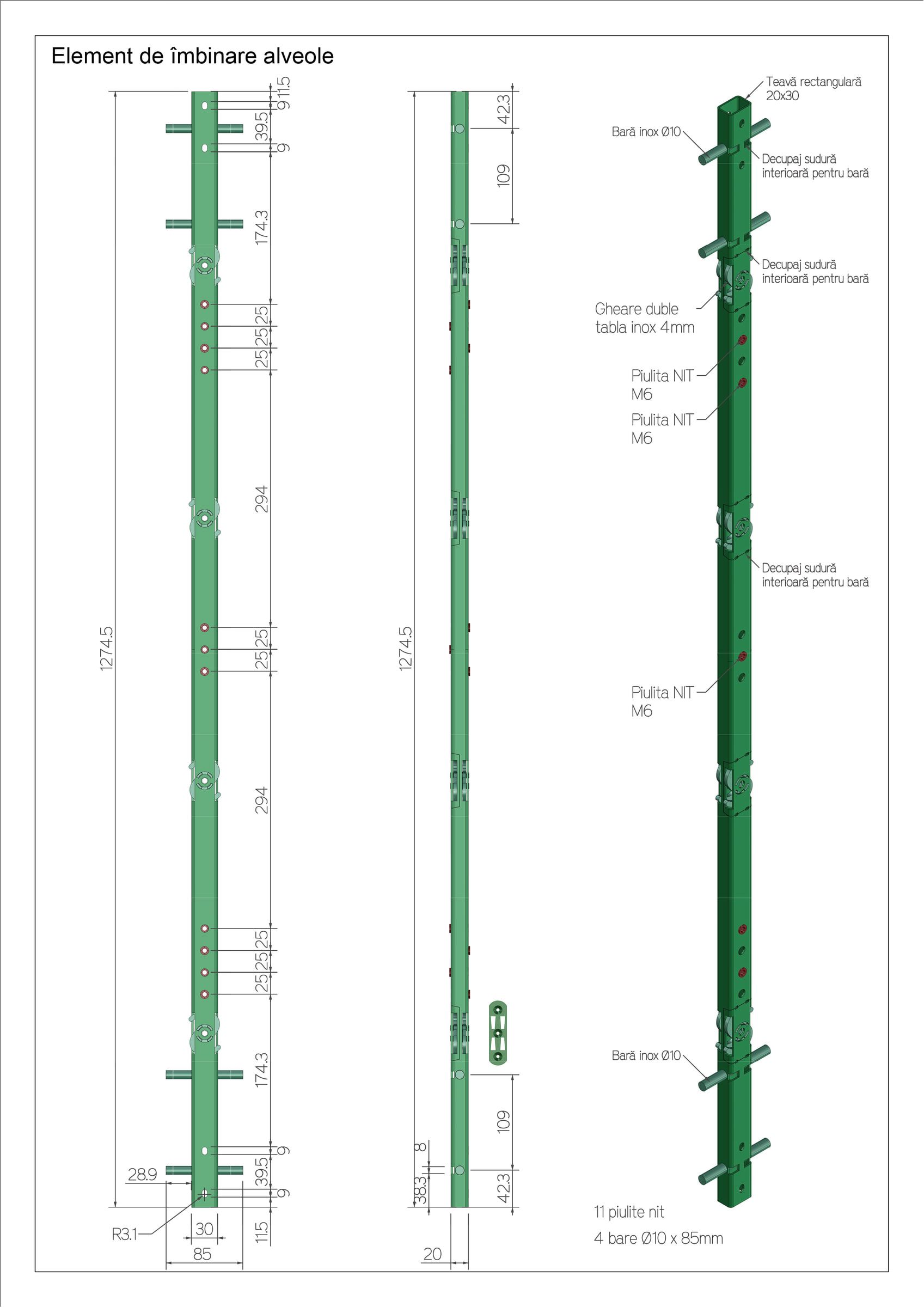

Technical drawing of the concealed panel connection element — The connection element was dimensioned for repeatable fabrication and assembly.

Acoustic panels configured as a lounge, coat rack, and shared storage area — Furniture and accessories allow the divider system to support entirely different workplace functions.

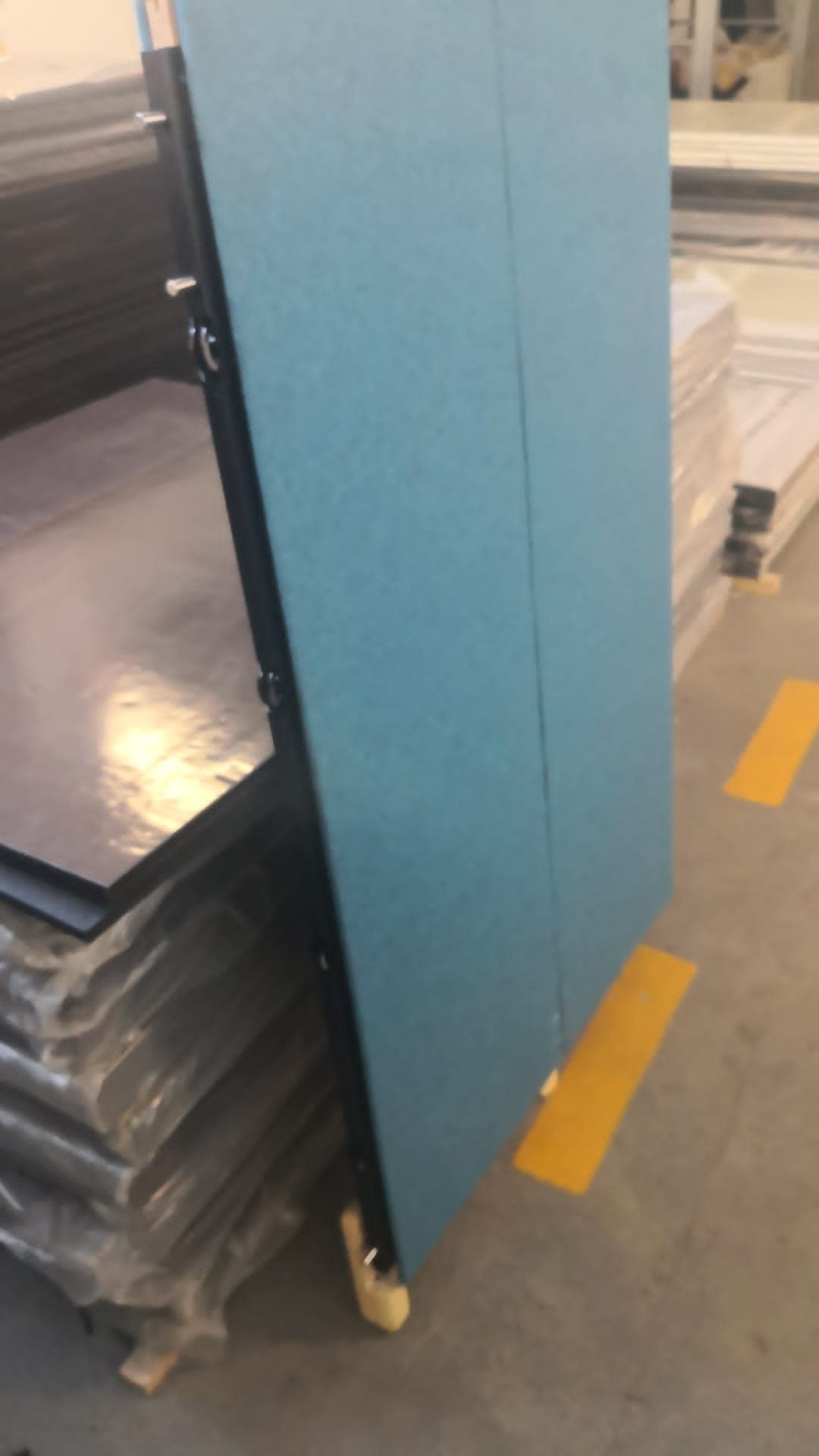

Full-height upholstered panel prototype photographed in the workshop — The full-scale prototype validated panel rigidity, upholstery, and concealed assembly.

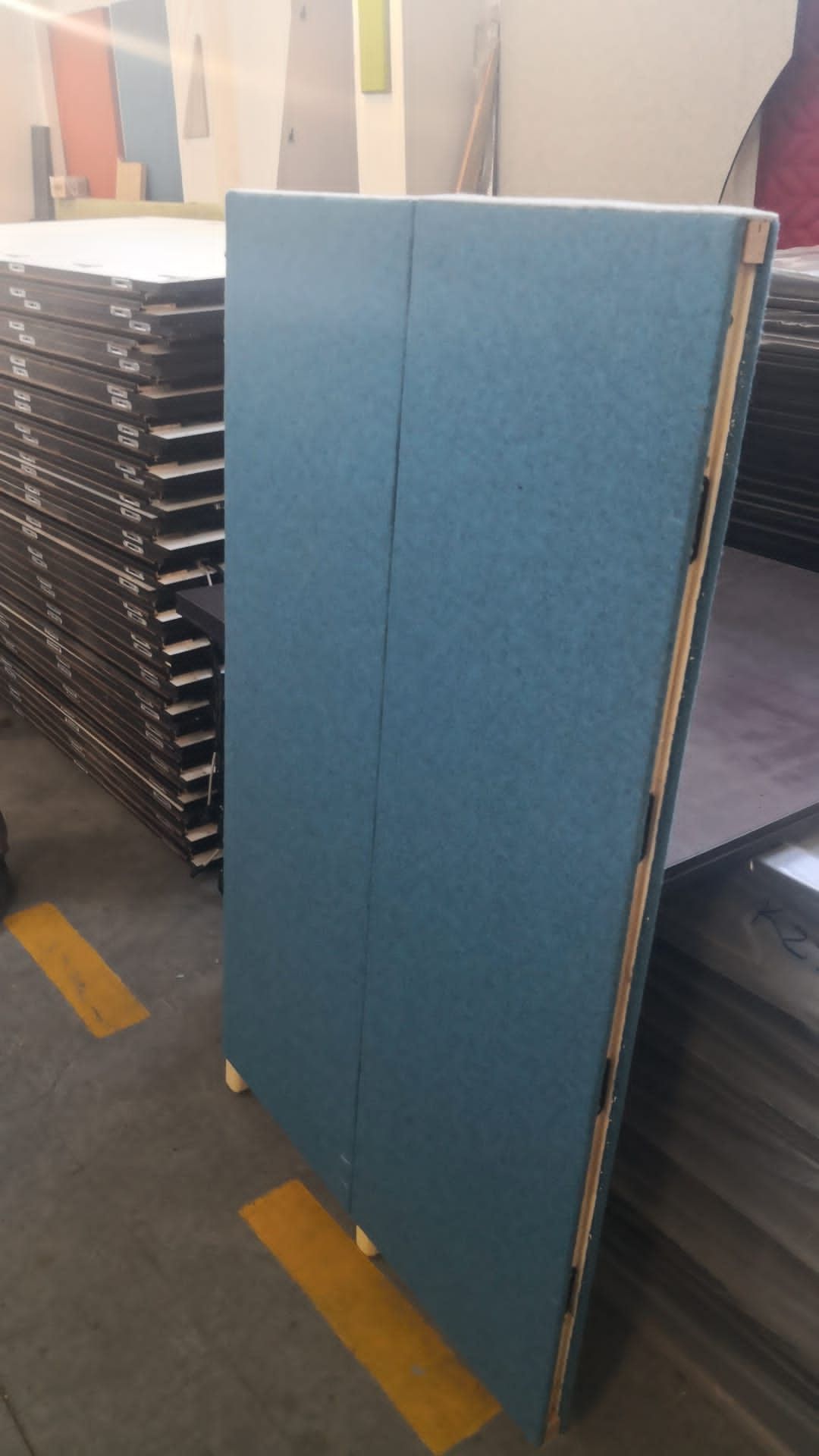

Workshop prototype showing two upholstered acoustic panels joined at a corner — Corner assembly tests confirmed alignment across adjacent upholstered faces.

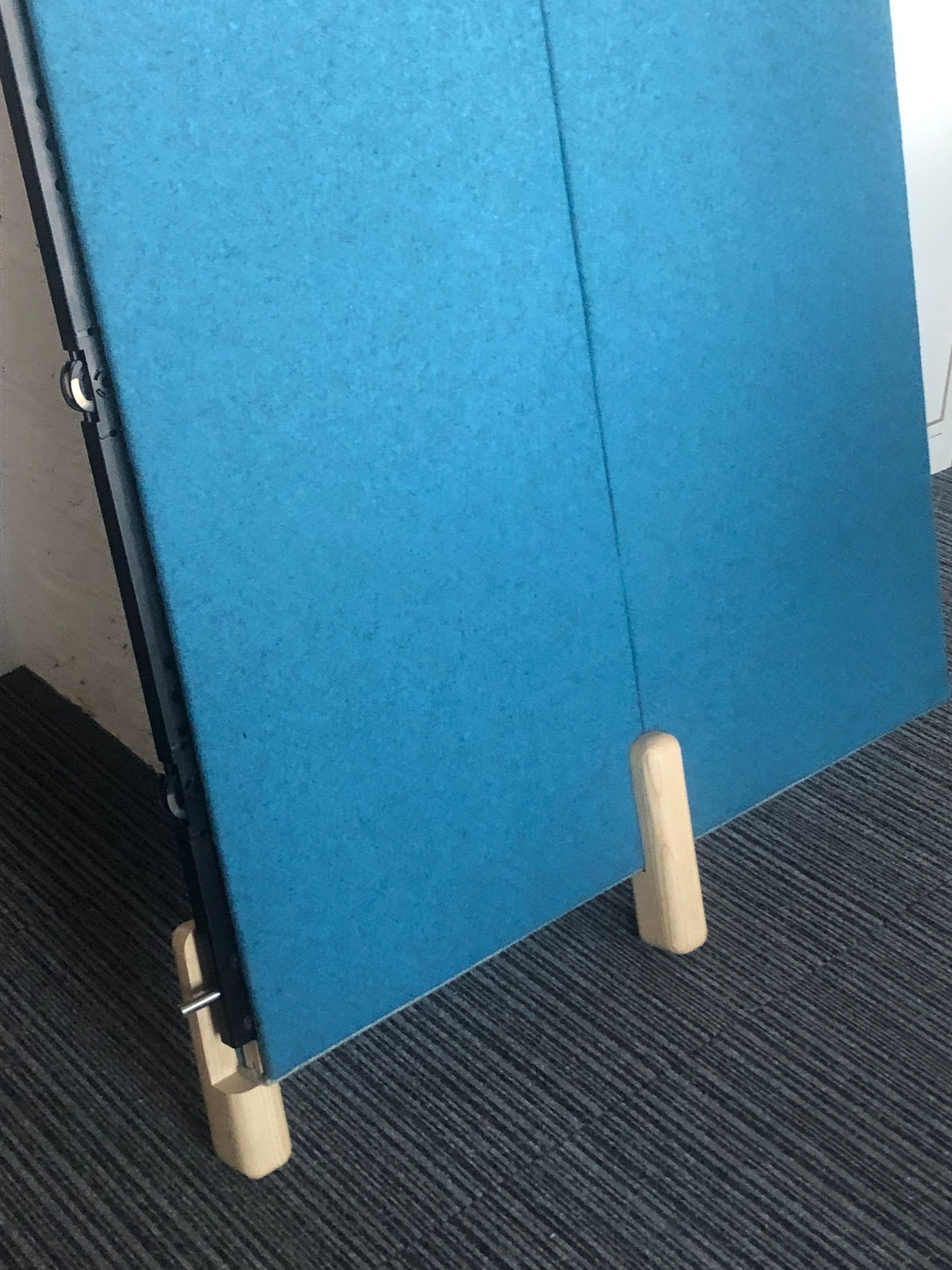

Installed prototype detail showing the concealed joint between two blue acoustic panels — The finished joint remains accessible while disappearing behind the panel edges.

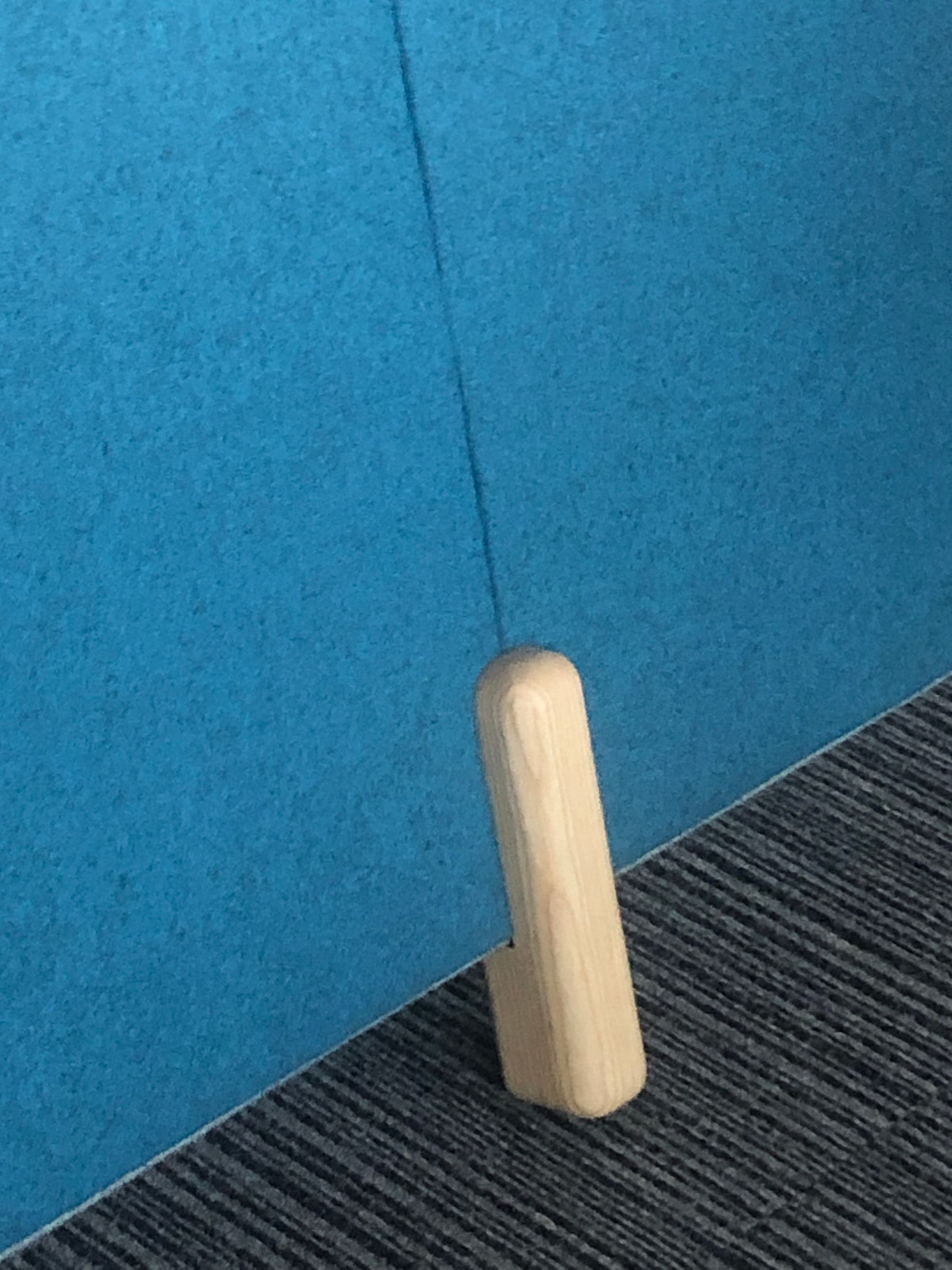

Installed prototype detail showing a timber support at the base of a blue acoustic panel — The support transfers load to the floor and gives the modular run a consistent datum.
